13,500 GPH (51,103 LPH)

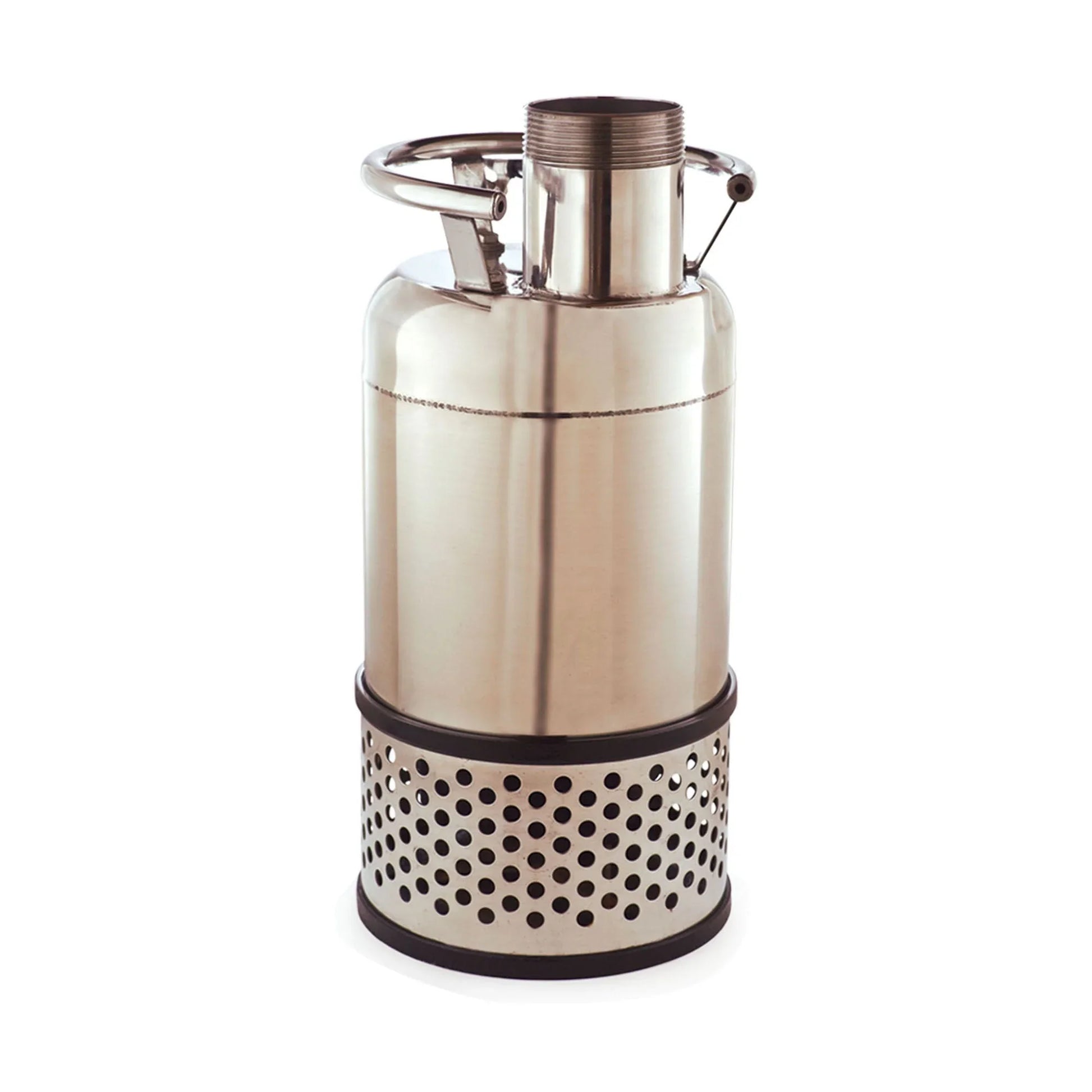

The Atlantic Water Gardens TidalWave 1 HP Low Head pump is the highest-flow pond and waterfall pump in the Atlantic Water Gardens lineup, delivering an extraordinary 13,500 GPH (51,103 LPH) at low head pressures. Designed specifically for wide, high-volume waterfall faces, large natural pond recirculation, and commercial-scale water feature applications, this pump moves serious water volume with the efficiency of a low-head design — delivering maximum flow at the shallow lift heights typical of pondless waterfalls and above-grade stream channels.
Low Head Design Advantage
Low head pumps are optimised to deliver peak flow at shallow vertical lifts — typically 1 to 4 feet — rather than maintaining high pressure at greater heights. For wide waterfalls and stream features where the pump is only a few feet below the waterfall lip, a low-head pump delivers significantly more gallons per hour for the same horsepower than a high-head pump. At 13,500 GPH on a 1-HP motor, the TidalWave Low Head is one of the most efficient choices available for high-volume, low-lift installations.
Specifications
| Flow Rate | 13,500 GPH (51,103 LPH) |
|---|---|
| Power | 1 HP |
| Design | Low head — optimised for 1–4 ft vertical lift |
| Application | Wide waterfalls, large pond recirculation, commercial features |
| Discharge | 2" outlet |
- 13,500 GPH (51,103 LPH) — the highest flow pump in the Atlantic Water Gardens range
- 1 HP low-head design delivers maximum volume at shallow lift heights
- Ideal for wide rock waterfalls, large pondless reservoirs, and commercial installations
- 2-inch discharge for high-volume pipe runs
