Airmax Pondseries 2 HP Crown & Trumpet Nozzle - 13' H x 8' W 6.5'h x 38' W
AM-651899

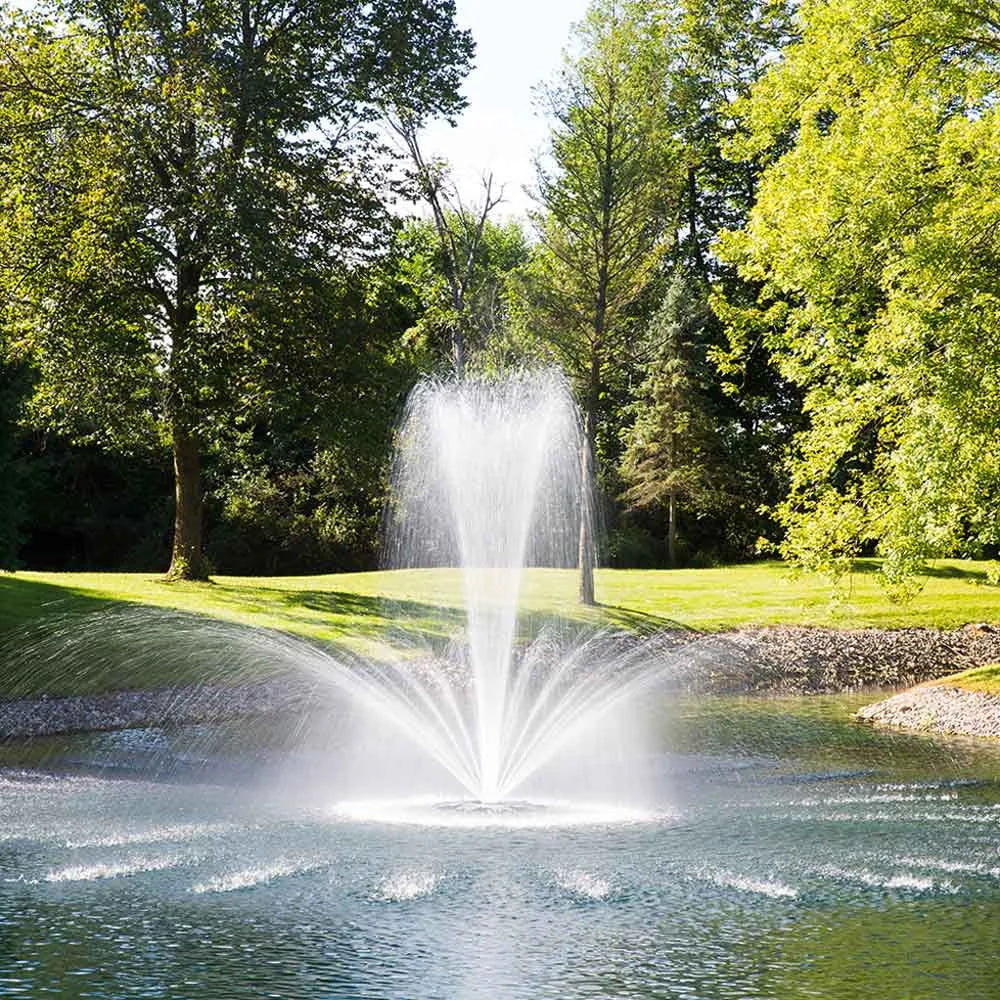

Airmax PondSeries 2 HP Crown and Trumpet Floating Fountain
The PondSeries 2 HP Crown and Trumpet fountain is built for large ponds and small lakes where a 1/2 HP unit does not produce the visual scale the water body demands. The crown nozzle spans 6.5 ft (2 m) high and 38 ft (11.6 m) wide; the trumpet nozzle reaches 13 ft (4 m) high and 8 ft (2.4 m) wide. Both patterns deliver substantial surface agitation that improves dissolved oxygen exchange across the full pond.
Large-Pond Aeration and Display
At 2 HP, this unit moves enough water to make a visible aeration contribution to ponds up to 2 acres. The wider crown pattern breaks water across 38 ft (11.6 m) of surface, significantly improving oxygen exchange compared to a smaller fountain. For large feature ponds where both visual impact and water quality management matter, a 2 HP fountain is the practical choice over adding a separate aerator system.
| Horsepower | 2 HP |
|---|---|
| Crown Nozzle | 6.5 ft H x 38 ft W (2 m x 11.6 m) |
| Trumpet Nozzle | 13 ft H x 8 ft W (4 m x 2.4 m) |
| Voltage | 115V or 230V (confirm at time of purchase) |
| Coverage | Suitable for ponds up to 2 acres |
| Installation | Floating, with mooring lines |
Installation
Float centred in the pond and secure with mooring lines. Connect to a GFI-protected outdoor outlet rated for the motor's amperage draw. Position the unit to give the spray pattern room to fall within the pond boundary. The crown pattern reaches 19 ft (5.8 m) out from centre. Remove and store indoors before freeze-over.
Ideal for large recreational ponds, small lakes, golf course features, and commercial water bodies from 1 to 2 acres requiring large-scale fountain display and surface aeration.
