ArtesianPro (High Flow) Variable Speed - 0-1.65HP, 115/230V, 13.4 Amp - 12,240 GPH - 41.9'

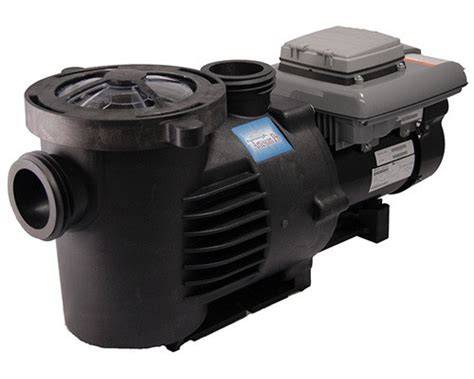

PerformancePro ArtesianPro AP1.6-HF-DAF Variable Speed Self-Priming Pump – 1.65 HP, 115V/230V, 3"

The PerformancePro ArtesianPro AP1.6-HF-DAF Dial-A-Flow Pump combines high-flow performance, energy-efficient variable-speed operation and true self-priming capability in a rugged external pond pump. Designed for large ponds, waterfalls, filtration systems, koi ponds and other demanding water-circulation applications, the ArtesianPro allows you to precisely adjust pump output to match the needs of your system.

Unlike a conventional single-speed pump that operates at full output whenever it is running, the Dial-A-Flow variable-speed controller allows the pump speed and flow to be adjusted as required. This provides greater control over waterfalls and filtration systems while allowing the pump to operate at reduced speeds when maximum flow isn't necessary, potentially reducing both energy consumption and operating noise.

The self-priming design makes the AP1.6-HF-DAF an excellent choice for installations where the pump needs to be positioned above the pond's water level. An integrated oversized strainer basket helps protect the pump from leaves and larger debris, while the transparent easy-open lid allows for quick visual inspection and convenient maintenance.

Designed specifically for high-volume water movement, the ArtesianPro features 3" suction and discharge connections, helping reduce plumbing restriction on large-flow systems. 3" union fittings are included for easier installation and servicing.

Key Features

• 1.65 HP variable-speed motor
• High Flow (HF) configuration for high-volume pond and water-feature applications
• True self-priming external pump
• Variable-speed Dial-A-Flow control
• Adjustable pump output to match system requirements
• 3" inlet and 3" discharge
• 3" union fittings included
• Integrated large-capacity strainer basket
• Easy-open transparent strainer lid
• Energy-efficient design for continuous operation
• Quiet-running external pump design
• Corrosion-resistant polypropylene pump housing
• Long-life, corrosion-resistant stainless steel shaft seal
• Totally enclosed fan-cooled motor design
• Oil-free external motor helps eliminate the risk of oil contamination in the pond
• Integrated digital control/timer functionality
• Designed and built in the USA

Specifications

Model: AP1.6-HF-DAF
Series: ArtesianPro Dial-A-Flow High Flow
Pump Type: External / Self-Priming / Variable Speed
Motor: 0–1.65 HP
Voltage: 115/230V
Maximum Flow: Approximately 12,000+ GPH depending on configuration and operating conditions
Maximum Head: Approximately 42 ft
Inlet: 3"
Outlet: 3"
Motor Enclosure: TEFC
Application: Freshwater ponds, koi ponds, waterfalls, bog filters and large filtration/circulation systems

Actual flow will vary depending on total dynamic head, pipe diameter and length, fittings, valves, filters and elevation changes within the system.

Ideal Applications

The PerformancePro AP1.6-HF-DAF is an excellent choice for large koi ponds, recreational ponds, high-flow biological filtration systems, bog filters, large waterfalls and other applications requiring substantial circulation with adjustable flow.

The combination of 3" plumbing, self-priming capability and variable-speed control makes this pump particularly well suited to larger custom pond systems where both high flow and precise control are important.
