ArtesianPro (High Head) - 5HP, 208-230V, 3600 RPM, 19.2 Amp (230V) - 16,500 GPH - 91.9'
ArtesianPro (High Head) - 5HP, 208-230V, 3600 RPM, 19.2 Amp (230V) - 16,500 GPH - 91.9'
PPP-AP50-HH
High-Performance Single Speed External Pond Pump
The ArtesianPro AP-5-HH is a high head external pump designed for demanding applications including large ponds, swimming pools, and impressive waterfall installations. This 5HP single speed pump combines robust construction with reliable operation, delivering exceptional performance where significant head pressure and high flow rates are required.

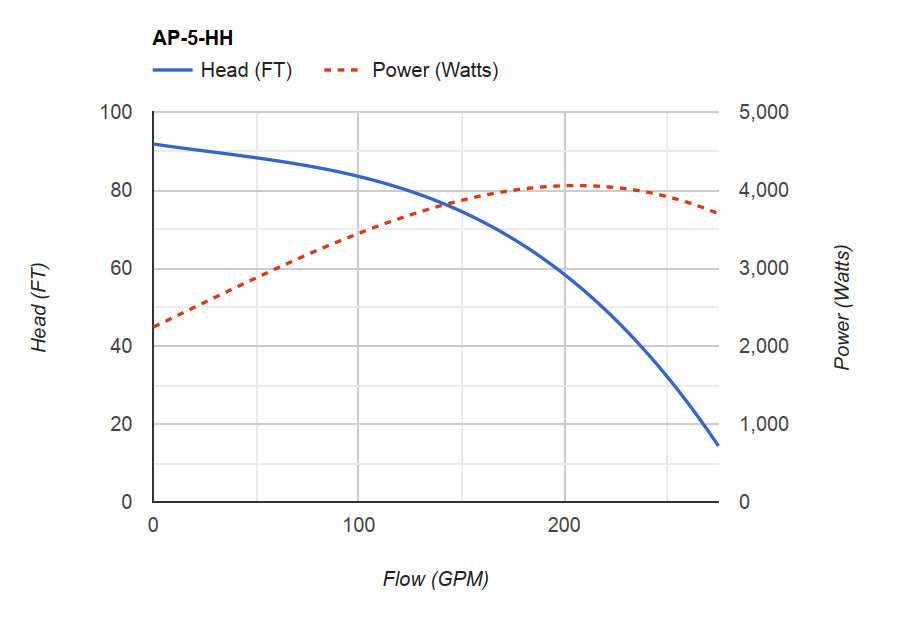

Performance Specifications
| Specification | Value |
|---|---|
| Maximum Head | 92 feet |
| Maximum Flow Rate | 240 GPM |
| Motor Power | 5.0 HP |
| Maximum Watts | 4,100W |
| Voltage | 208-230V/1/60Hz |
| Maximum Amperage | 22A |
| Motor RPM | 3,450 |

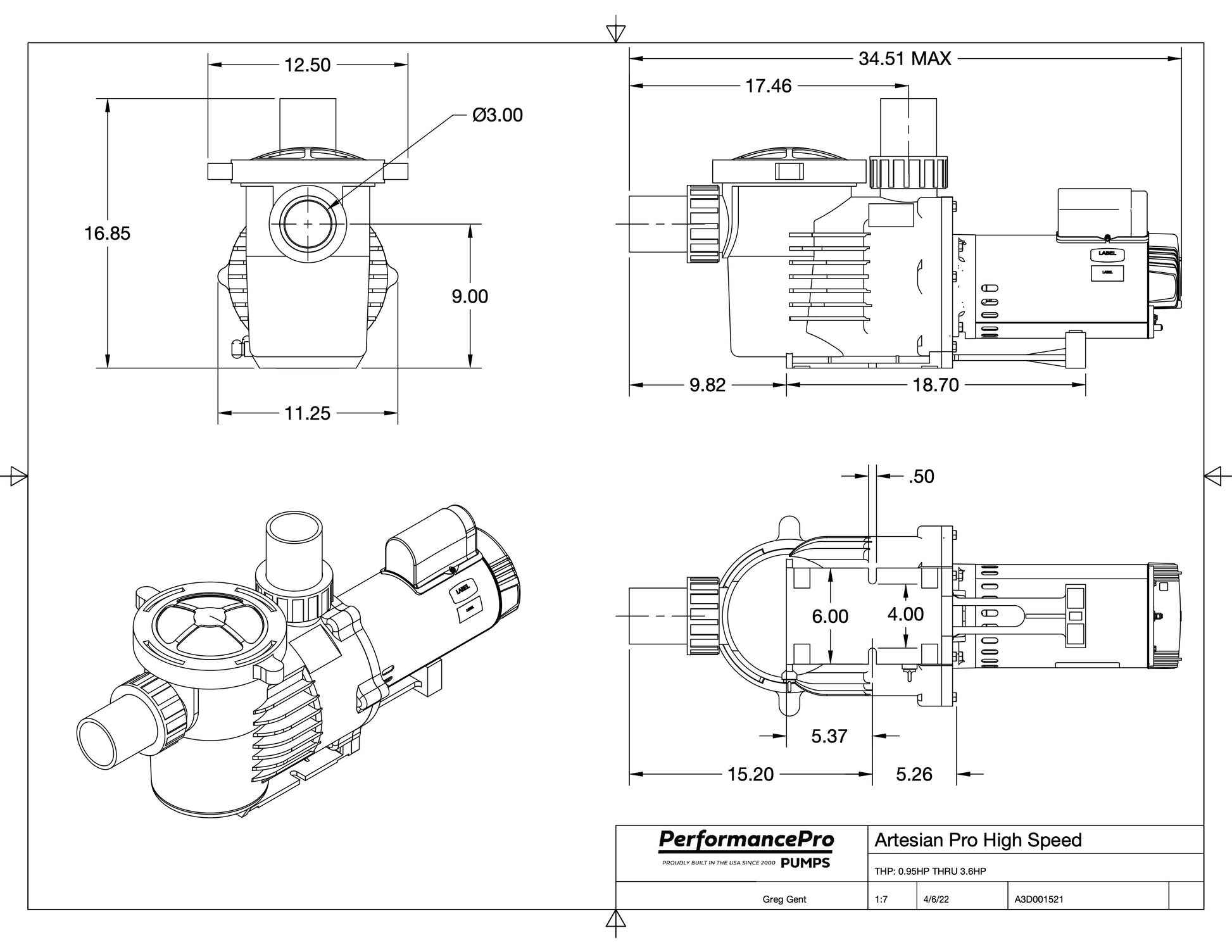

Physical Dimensions
| Dimension | Measurement |
|---|---|
| Inlet/Outlet Size | 3 inches |
| Impeller | AP1/2L |
| Trim | 5.00 |
ArtesianPro Series Engineering
The ArtesianPro series delivers a powerful blend of energy efficiency and durability. Designed with longevity in mind, these rugged units feature corrosion and abrasion resistant components utilizing stainless steel and composite materials. Made with care in the U.S.A., each pump is engineered for continuous operation in demanding environments.
Key Features
External Installation: Designed for above-water-level positioning, providing easy access for maintenance while protecting your investment from electrical hazards.
Single Speed Reliability: Century APM-129 motor with ODP enclosure and 56Y square flange mounting provides consistent, dependable performance for continuous operation.
Self-Priming Design: Eliminates manual priming requirements, ensuring reliable startup with integrated strainer basket and transparent lid for easy monitoring and cleaning.
Industry-Leading Motor: Oil-free ODP motor provides excellent protection, quiet operation, and long-term reliability in outdoor environments.
Corrosion Protection: Long-life, corrosion-resistant stainless steel shaft seal and composite components ensure durability in harsh environments.
Complete Installation Package: Includes 3-inch union fittings for convenient setup (2-inch fittings available on request).
Applications
Perfect for large ponds, swimming pool circulation systems, commercial water features, and dramatic waterfall installations requiring substantial head pressure. The external mounting design makes it ideal for permanent installations where the pump needs to be positioned above the water level. Single speed design provides consistent, reliable flow for applications requiring steady circulation and filtration.
Warranty & Options
Backed by a 3-year limited warranty for fresh water applications and 1-year warranty for salt water use. Salt water kit available for marine applications, ensuring versatility across different water chemistry requirements.
