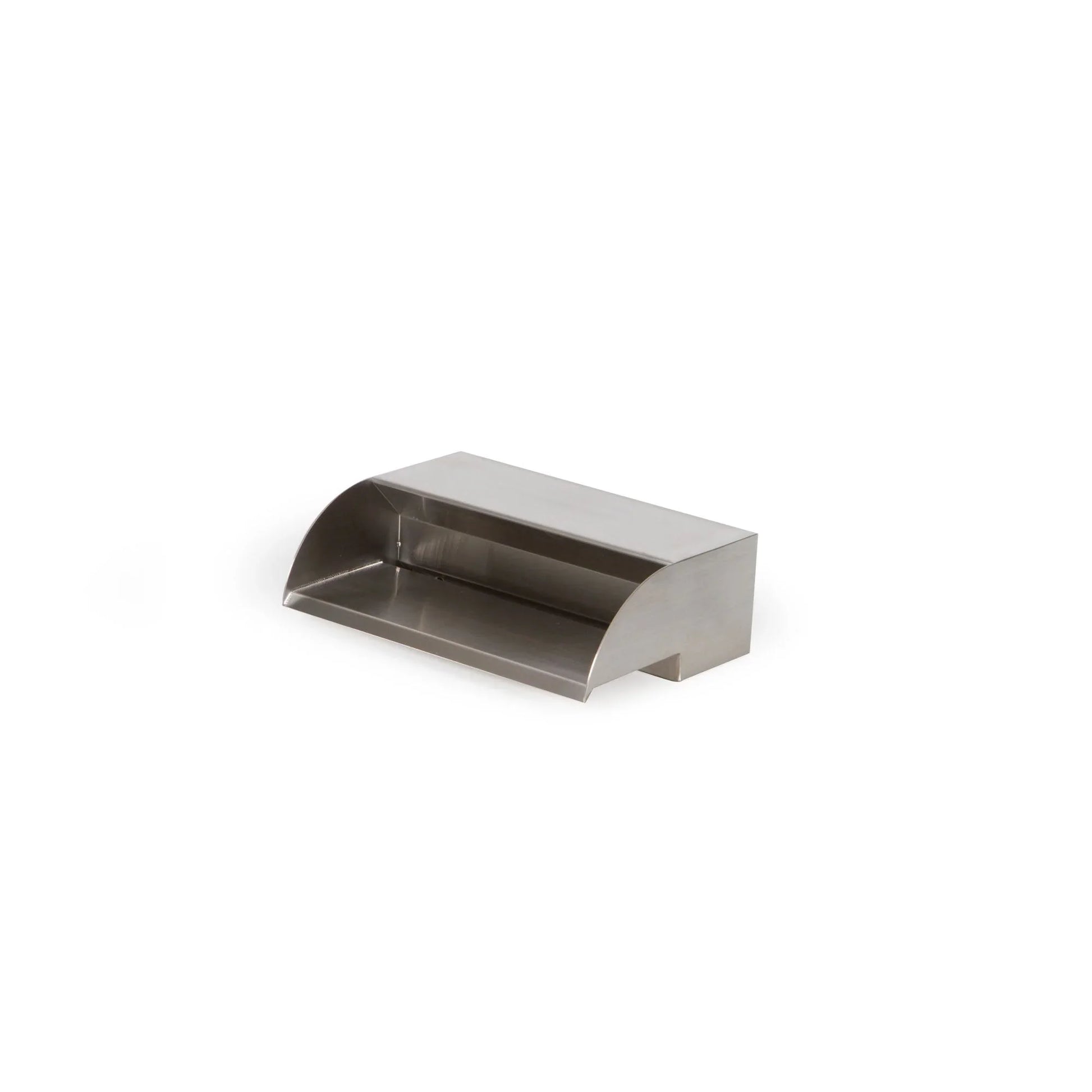

Atlantic Water Gardens 12" Stainless Steel Spillway - 316 Steel
AT-SS12-316
316 Grade for Lasting Pond Wall Elegance
The Atlantic Water Gardens 12-inch stainless steel spillway in 316-grade steel delivers a clean, modern cascade of water over a polished lip for pond walls, retaining walls, and formal water features. The 316 grade alloy provides superior corrosion resistance versus standard 304 stainless — critical in the presence of pond water chemistry, fertiliser run-off, and the chloride levels common near Canadian coastal and urban environments.
316 Stainless — The Corrosion-Resistant Choice
Grade 316 stainless adds molybdenum to the alloy composition, which dramatically improves resistance to pitting corrosion from chlorides and pond chemistry. Over years of outdoor exposure, 304-grade spillways can develop surface rust staining that mars the appearance of a formal water feature. The 316-grade construction of this spillway maintains its brushed finish season after season without protective coatings. The 12-inch width produces a graceful curtain of water ideal for smaller pond walls and accent features.
| Width | 30 cm (12") |
|---|---|
| Material | Grade 316 stainless steel |
| Recommended Flow | Up to ~1,200 GPH (4,542 LPH) |
| Inlet | 1.5" FPT (female pipe thread) |
| Finish | Brushed stainless |
| Mounting | Surface mount with included hardware |
How to Install
Mount the spillway on the pond wall at the desired height using the included hardware. Connect a 1.5-inch supply line from your pump (sized at 1,200 GPH or less for best sheet-flow effect). Use a pump vault or basin below the spillway to catch returning water. For a uniform water sheet, ensure the spillway is mounted perfectly level — even a 2 mm variance in level causes the water sheet to favour one side.
Ideal for formal pond walls, modern garden features, and contemporary outdoor living spaces across Canada.
