Atlantic Water Gardens Warm White Lighting System

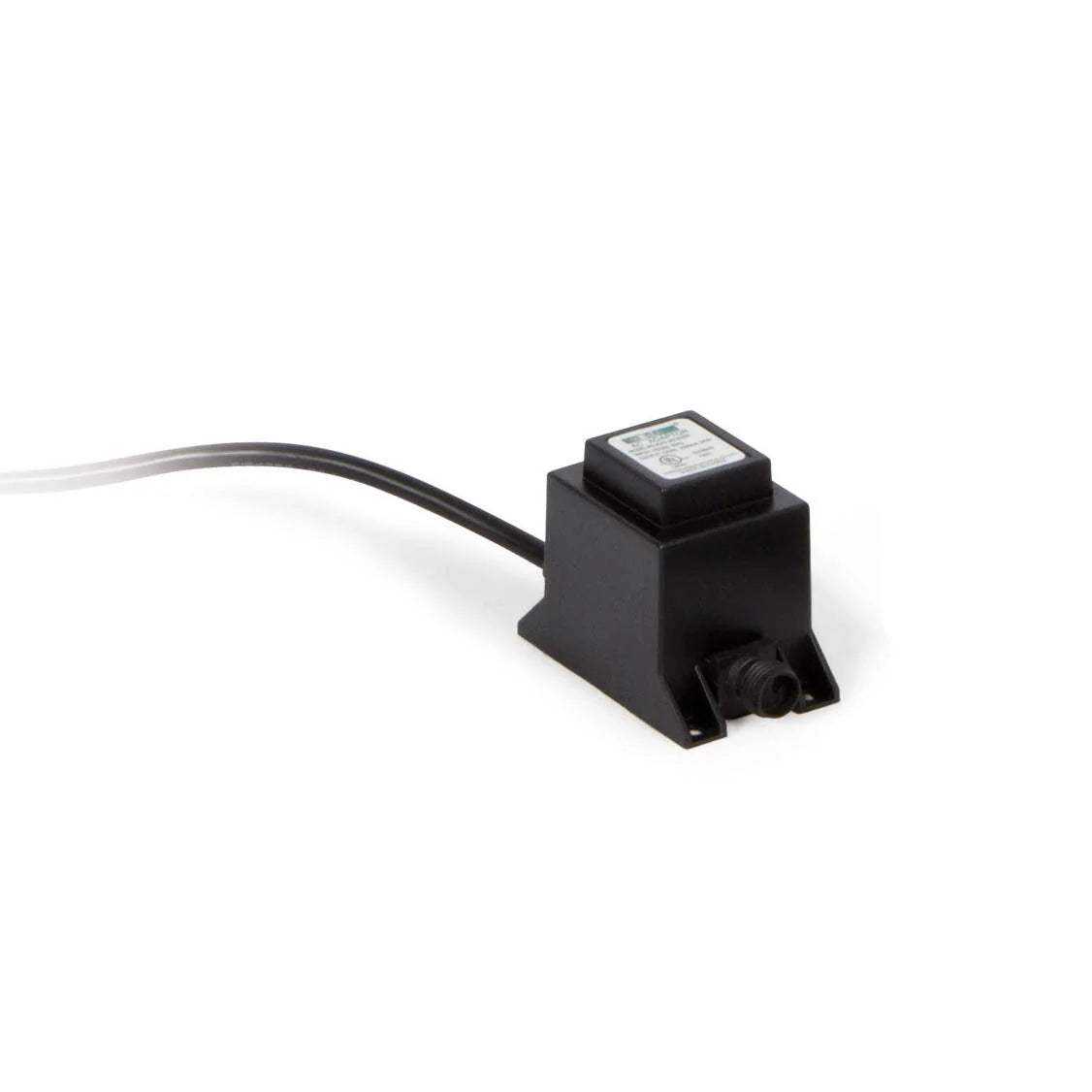

The Atlantic Water Gardens 30-watt transformer is the power source for the entire AWG warm white LED pond lighting system. Stepping down household current to safe low voltage, it provides reliable, stable power for up to 30 watts of connected LED load — enough to run a full perimeter lighting installation of fifteen 2-watt lights, six 5-watt bar lights, or any combination across the warm white range. It is the essential starting point for any AWG warm white lighting project.
Output & Load Capacity
At 30 watts total capacity, the transformer comfortably manages the typical residential pond lighting load. A well-designed installation might combine three 4-outlet block splitters running three 2-watt lights each — totalling only 18 watts — leaving ample headroom for future expansion. For large installations exceeding 30 watts, connect a second transformer on a separate circuit.
Safety & Installation
The transformer is outdoor-rated for direct exposure to rain, splash, and temperature fluctuation. The low-voltage output eliminates shock hazard at the lamp and connection points, making wet-environment installation safe. Plugs into a standard GFCI-protected outdoor outlet — required for all outdoor electrical installations near water features.
| Output Capacity | 30 watts |
|---|---|
| Output Voltage | Low voltage (safe for water environments) |
| Compatible Lights | All AWG warm white LED lights |
| Housing | Outdoor-rated, weatherproof |
| Outlet Required | GFCI-protected outdoor outlet |
- 30W capacity powers up to fifteen 2W lights or six 5W bar lights
- Outdoor-rated weatherproof housing for year-round use
- Low-voltage output — safe for wet, in-water environments
- Required for all AWG warm white lighting system installations
