High-Flow TidalWave2 Service Part

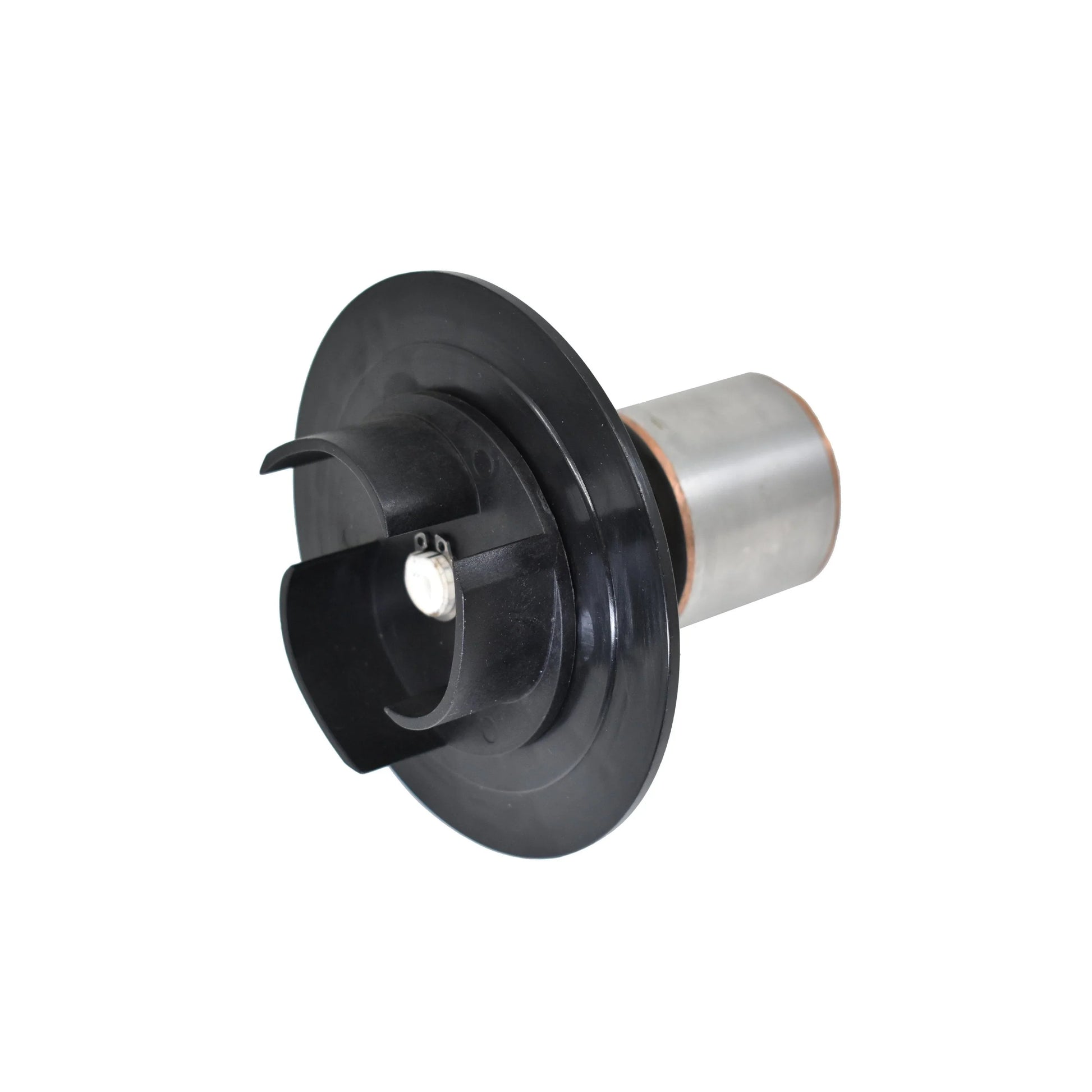

The Atlantic Water Gardens Waterfall Pump 6600/8000 impeller assembly is the complete replacement impeller unit for TidalWave2 pumps in the 6,600–8,000 GPH (24,984–30,283 LPH) range, including the TidalWave2 TW6000 series. At this flow scale, a worn impeller causes dramatic reductions in waterfall height and stream velocity — replacement restores the full dramatic visual effect of a large water feature.
Largest TidalWave2 Impeller Assembly
High-flow impellers at this scale handle tremendous hydraulic loads. The blade geometry, diameter, and magnet coupling in the 6600/8000 assembly are engineered for the specific motor winding of these large TidalWave2 pumps. Using a smaller or mismatched impeller will not generate sufficient flow at the higher resistance of a large waterfall installation. Always use the correct assembly for the pump model to maintain rated output.
| Compatible Pumps | TidalWave2 series, 6,600–8,000 GPH range (incl. TW6000) |
|---|---|
| Flow Range Covered | 6,600–8,000 GPH (24,984–30,283 LPH) |
| Kit Contents | Complete impeller assembly (blade, magnet, shaft) |
| Installation | Quarter-turn volute cover access |
| Part Type | Genuine Atlantic Water Gardens OEM |
How to Replace
Remove and unplug the pump. Rotate the volute cover counter-clockwise to access the impeller chamber. Extract the worn assembly and insert the new one, ensuring it seats fully. Reinstall the volute, confirm free rotation, and return to service. Inspect at spring startup each season and replace when flow drops or noise increases.
Ideal for large professional pond installations requiring maximum-flow TidalWave2 performance in Canada.
