High-Volume Mid-Range Pump for Agricultural & Commercial Use

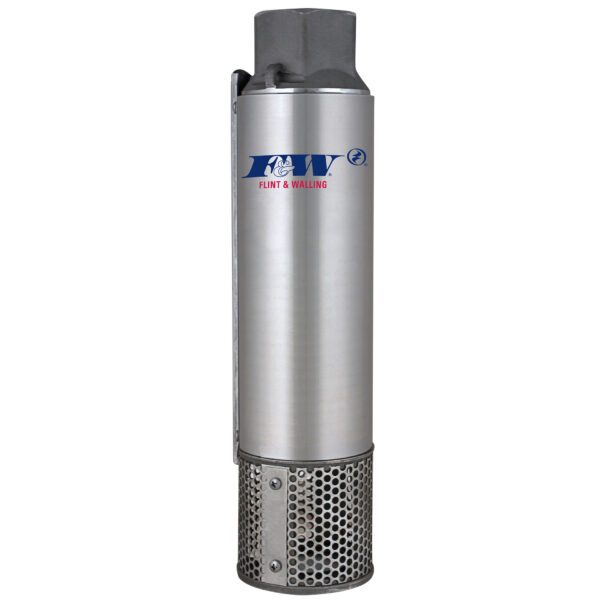

The 19 GPM 1 hp model represents Flint & Walling's engineering sweet spot: substantial flow capacity with moderate horsepower and exceptional reliability. This pump end is engineered for agricultural irrigation, commercial water delivery, and any application where consistent high-volume output is needed. Stainless steel construction ensures the pump operates trouble-free in challenging water chemistries and corrosive environments.
Multi-Stage Design for Maximum Flow
Flint & Walling's proven multi-stage turbine impeller delivers a full 19 GPM even at moderate depths. The 304 stainless steel pump shell, casing, and hex drive shaft create a completely corrosion-resistant fluid path. This design maintains efficiency across a broad operating range, reducing energy consumption and wear.
Core Specifications
| Feature | Specification |
|---|---|
| Flow Capacity | 19 GPM |
| Horsepower | 1 hp |
| Construction | 304 Stainless Steel (pump & housing) |
| Connection | 1-1/4 inch NPT discharge |
| Check Valve | Internal positive sealing |
Key Applications
Agricultural wells serving 5–15 acres, municipal parks and sports facilities, light commercial water systems, and any installation requiring 15–20 GPM sustained flow. The 1 hp rating keeps electrical infrastructure requirements reasonable.
