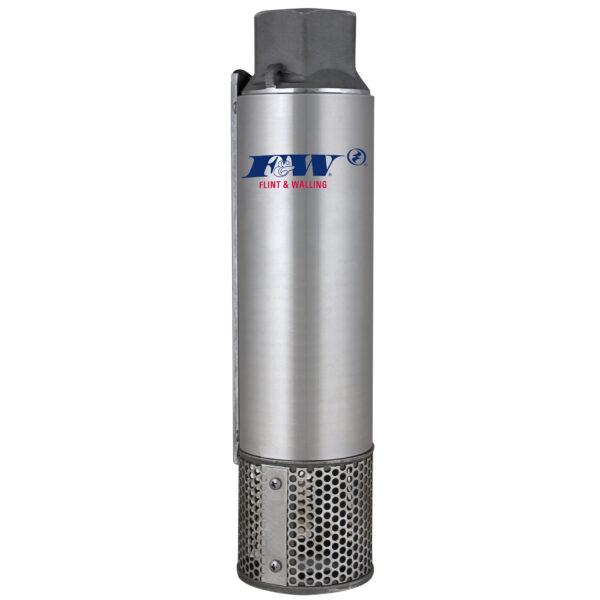

Balanced High-Flow Performance with Enhanced Pressure Capability
The 19 GPM 1.5 hp pump end raises the pressure ceiling while maintaining the high-volume, efficient operation that makes 19 GPM flow so popular. This configuration is ideal for longer distribution lines, slightly deeper wells, or applications demanding both volume and discharge pressure. 304 stainless steel construction protects against corrosion in any water environment.
Optimized Performance Range
The 1.5 hp rating gives you extra headroom to maintain optimal flow over longer distances or at greater depths. Stainless steel pump shell and shaft eliminate rust concerns. Internal check valve prevents backflow when the motor shuts down, preserving system prime for the next cycle.
Technical Profile
| Item | Rating |
|---|---|
| Discharge Volume | 19 GPM |
| Motor Output | 1.5 hp |
| Pump Material | 304 Stainless Steel |
| Discharge Port | 1-1/4 inch NPT |
Common Applications
Larger farms (15–30 acres), multi-building commercial estates, municipal systems with elevated service areas, and deep wells requiring sustained moderate pressure.
