Optional Intake Tube to Expand JAFM Pump Vault Capacity

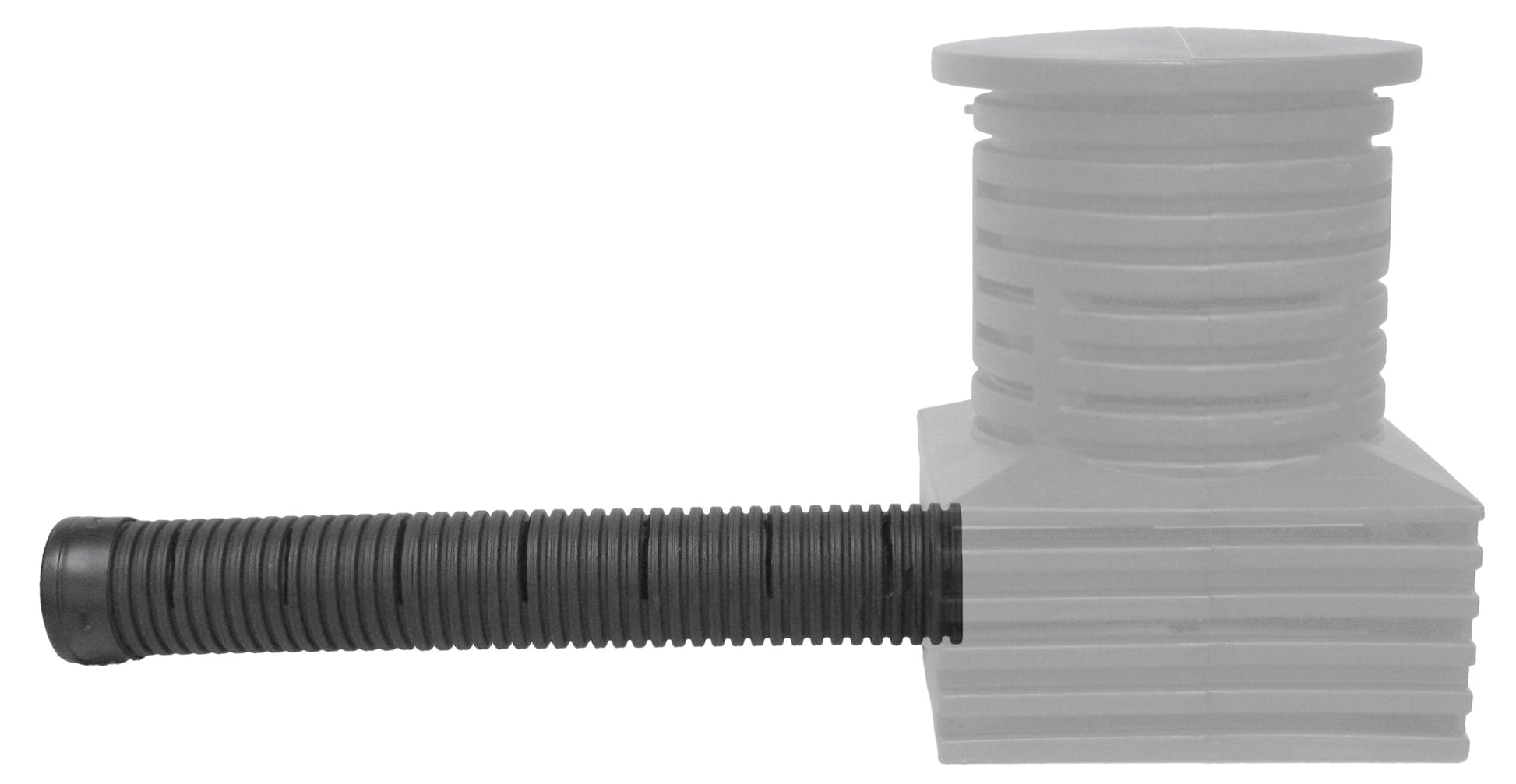

The EasyPro JAFM30 Intake Tube is an optional accessory for the JAFM Small Pump Vault that increases the vault's effective flow capacity by an additional 2,500 GPH (9,463 LPH). The 4" diameter tube extends 30" (76 cm) into the gravel reservoir, drawing water from a wider surface area and reducing the risk of air entrainment in high-demand installations.
More Flow Without Upgrading Your Vault
When a single pump vault is not drawing enough water to keep up with demand, the JAFM30 extends the intake zone rather than requiring a larger vault. Simply attach the 4" tube to the JAFM vault's intake port and bury it horizontally in the reservoir gravel. The additional intake area allows the pump to maintain prime and flow rate in larger or longer reservoir installations.
| Specification | Value |
|---|---|
| Compatible Vault | JAFM Small Pump Vault |
| Tube Diameter | 4" (10 cm) |
| Tube Length | 30" (76 cm) |
| Added Flow Capacity | 2,500 GPH (9,463 LPH) |
How to Install
Attach the JAFM30 to the side intake port of the JAFM vault before placing in the reservoir. Orient the tube horizontally or at a slight downward angle into the gravel bed. Fill the reservoir around both the vault and the intake tube. No tools or adhesive required.
Ideal for pondless waterfall and Just-A-Falls installations where the JAFM vault is undersized for the reservoir volume or pump demand.
