Oase BioPress 2400 Pressure Filter

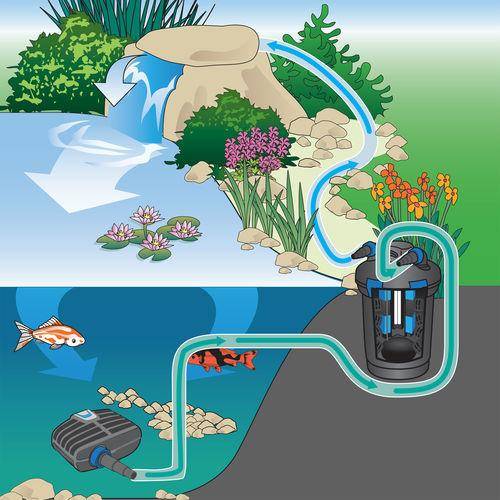

• In-line pressure filters offer biological and mechanical filtration that can be located remotely
• OASE BioPress filters use mechanical, biological filtration and ultraviolet light to keep water features up to 2,400 gallons clear

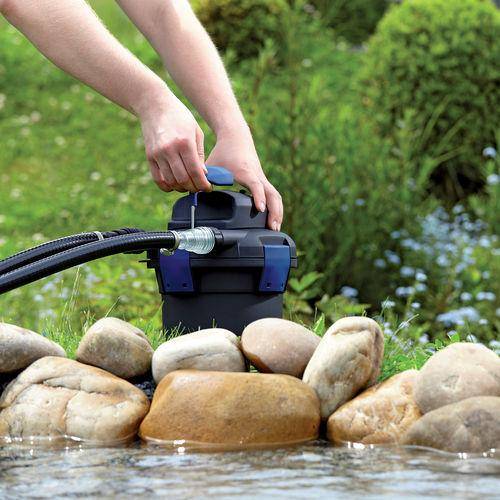

• Simply pulling the integrated cleaning handle up and down cleans and backflushes the filter foams without removing the cover
• Quick release clamps make opening and closing of the filter when performing maintenance tasks easy
• Canister may be buried up to the clamps. Use the OASE FiltoCap (not included) to completely conceal the filter

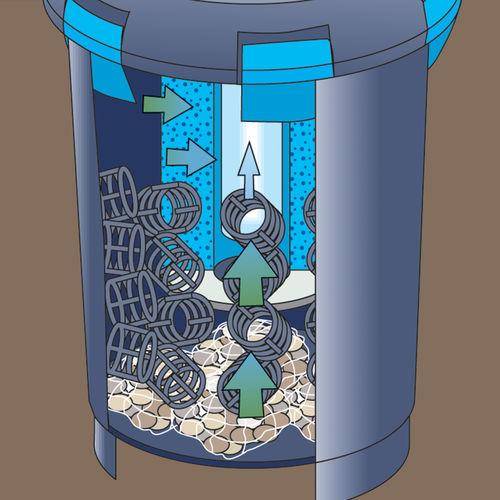

• Moving bed bio-media offers additional surface area for beneficial bacteria (1600 and 2400 only)
• Easy monitoring of the UVC, filter performance and pollutant level without opening filter
• For use with pumps with a 17' shut off or less and waterfalls up to 7' higher than the filter
• Includes 2 types of filter foams, bio-media (1600 & 2400 only), 11/4" / 11/2" Sch 40 adapter, UVC, metric step fittings (3/4", 1", 11/4", 11/2") and 10' power cord

BioPress systems can be installed unobtrusively by burying most of the body below ground.

• Effective Pond Size: up to 2400 gal. (1200 gallons with fish)
• Max. Pump Capacity: 2120 GPH (max)
• Intake Connection: 1 1/2 in. threaded, male
• Outlet Connection: 1 1/2 in. threaded, male
• Tubing Connector: 1 1/2 in., 2 in., Sch 40 (adapter)
• Power Cable Length: 10 ft.
• Power Consumption: 9W
• Power Requirement: 110-120V / 60Hz
• Regulatory Listing: CSA (Canada, US)
• Dimensions (Dia x H): 14 x 22.5 in.
• Limited Warranty: 2 Years

Includes

• Filter with integrated UVCBio-media
• Black hose adaptor
• Transparent stepped hose adaptor
• Flow indicator
• Nuts and seals
• Hose clamp
