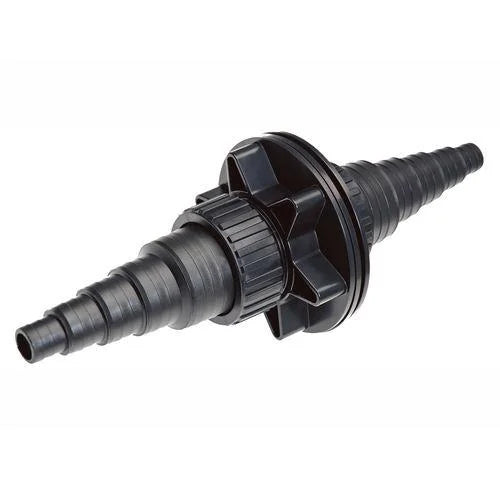

Oase Tradux Bulk Head Fitting (57154)
OAS-42750
Watertight Wall Penetration for Pond Plumbing
The Oase Tradux bulkhead fitting (part 57154) creates a sealed, threaded pipe connection through a pond wall, dam liner, or filter housing. Bulkhead fittings are essential wherever plumbing needs to pass through a barrier without leaking — connecting bottom drains, side returns, or external filter lines.
Reliable Seal in Critical Locations
The Tradux fitting uses a compression gasket that tightens against both sides of the wall material, forming a watertight seal even under continuous hydrostatic pressure. The threaded ports accept standard pond plumbing, making it compatible with a wide range of pipe and hose sizes.
| Specification | Details |
|---|---|
| Part Number | 57154 |
| Type | Compression bulkhead fitting |
| Application | Pond walls, liners, filter housings |
Installation
Drill a hole matching the fitting's through-bore diameter. Insert the fitting from one side, place the gasket and backing nut on the opposite side, and tighten until the gasket compresses evenly against the wall. Connect plumbing to both threaded ports and check for leaks before filling the pond.
Ideal for custom pond builds, bottom-drain installations, and any application where a pipe needs to pass through a pond wall or liner.
