Optional Intake Tube to Expand JAFV Pump Vault Capacity

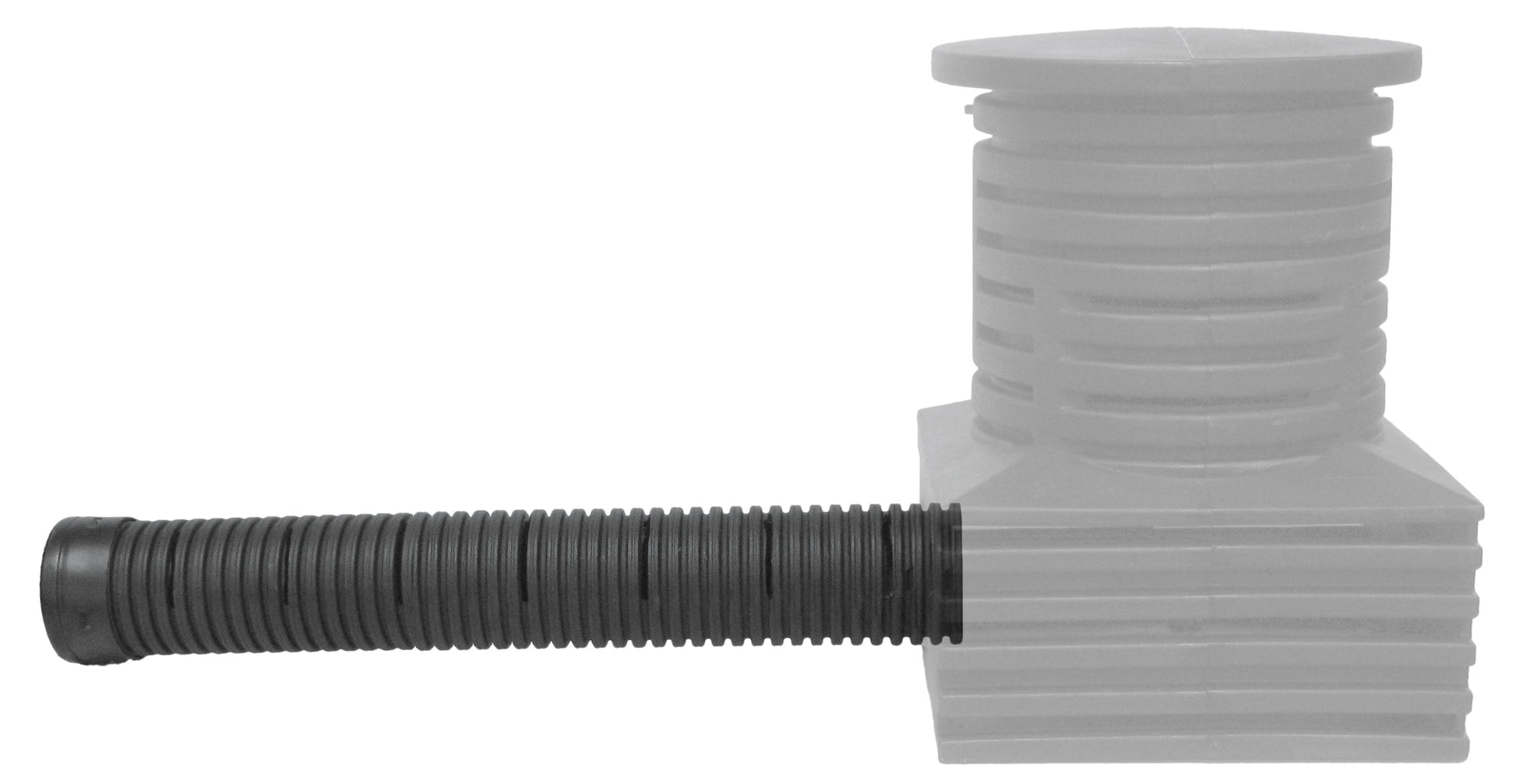

The EasyPro JAFV30 Intake Tube is an optional accessory for the JAFV Large Pump Vault that adds 5,000 GPH (18,925 LPH) of additional intake capacity. The 8" diameter tube extends 30" (76 cm) into the reservoir, pulling water from a wider gravel zone and sustaining high-flow performance in large pondless installations.
Sustain High-Flow Performance in Large Reservoirs
High-volume pumps can starve for water in large reservoirs if the intake zone is too narrow. The JAFV30 distributes the intake across a 30" lateral run of 8" diameter tube, drawing water evenly through the surrounding gravel and preventing cavitation. Particularly valuable in commercial pondless waterfall installations or wide, shallow reservoir designs.
| Specification | Value |
|---|---|
| Compatible Vault | JAFV Large Pump Vault |
| Tube Diameter | 8" (20 cm) |
| Tube Length | 30" (76 cm) |
| Added Flow Capacity | 5,000 GPH (18,925 LPH) |
How to Install
Attach the JAFV30 to the large intake port on the JAFV vault before placing in the reservoir. Orient the tube horizontally into the gravel fill. Fill the reservoir around both the vault and the intake tube. No tools or adhesive required.
Ideal for large commercial or residential pondless waterfalls where the JAFV vault must sustain peak flow rates across a wide or deep reservoir.
