PitViper 2.0 Cleanout Vault Extension for Deep Gravel Fills

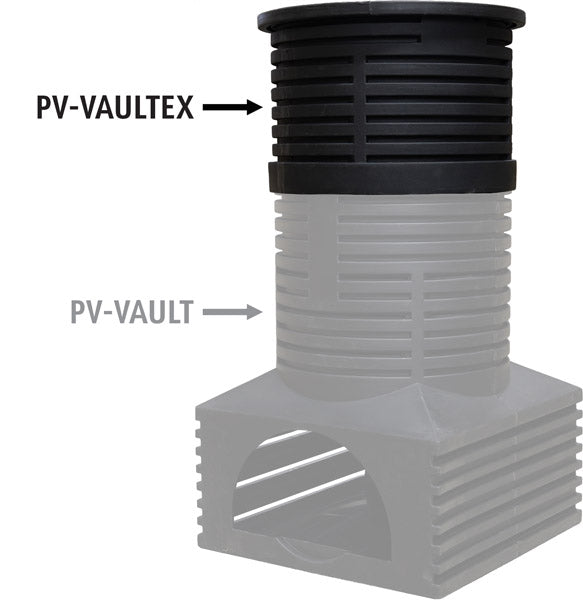

The EasyPro PV-VAULTEX is a 14" (36 cm) tall extension tube for the PV-VAULT cleanout vault, used when the gravel fill depth in a PitViper 2.0 wetland installation exceeds the standard vault height. It raises the cleanout access lid to the gravel surface for easy maintenance access.
Maintain Vault Access Through Deep Gravel Fills
Deep reservoirs and thick gravel media beds can bury a standard PV-VAULT lid below the surface, making cleanout access difficult. The PV-VAULTEX adds 14" (36 cm) to the vault height, ensuring the lid remains accessible at or above the gravel surface. Multiple extensions can be stacked for very deep installations.
| Specification | Value |
|---|---|
| Extension Height | 14" (36 cm) |
| Compatible Vault | PV-VAULT Cleanout Vault |
| System | PitViper 2.0 Wetland Diffuser |
| Stackable | Yes, for deeper installations |
How to Install
Place the PV-VAULTEX on top of the PV-VAULT before filling the area with gravel media. Ensure the extension tube is plumb and the lid sits at the intended finished grade. Fill gravel around the outside and replace the vault lid. No adhesive required.
Ideal for PitViper 2.0 wetland installations with deep gravel fills or sites where additional vault height is needed to maintain ground-level access to the cleanout port.
