Wetland Filter Cleanout Vault for PitViper 2.0 Systems

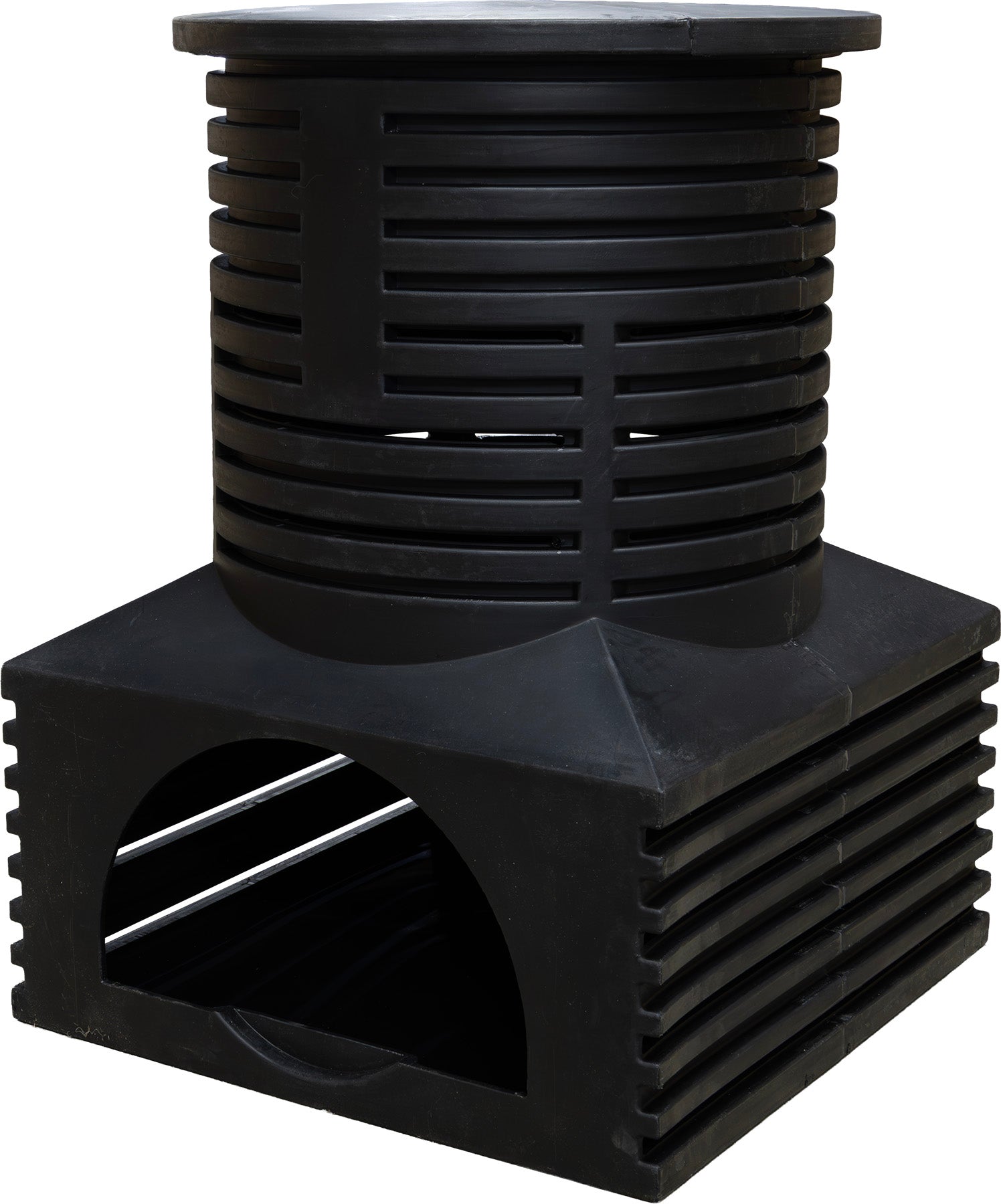

The EasyPro PV-VAULT Cleanout Vault connects directly to a PV-MID module and provides ground-level access for periodic lateral cleanout in PitViper 2.0 wetland filter installations. A clean-out point is recommended for every 20 ft (6 m) of lateral run to maintain long-term filter performance.
Keep Your Wetland Lateral Clean and High-Performing
Over time, fine particles can accumulate in the lateral run and reduce water distribution efficiency. The PV-VAULT provides a direct access point to flush and clean the diffuser modules without excavating the gravel fill. A flush wand or garden hose inserted through the vault access can dislodge built-up sediment and restore even flow distribution. Use PV-VAULTEX extensions to raise the vault lid above deep gravel fills.
| Specification | Value |
|---|---|
| Function | Lateral cleanout access vault |
| Connects To | PV-MID module |
| Extension Available | PV-VAULTEX (14" tall) |
| Recommended Spacing | Every 20 ft (6 m) of lateral run |
| System | PitViper 2.0 Wetland Diffuser |
How to Install
Connect the PV-VAULT to any PV-MID module along the lateral run. Orient the vault access tube vertically and fill gravel around it until the lid is at the required depth. Add PV-VAULTEX if the gravel fill is deeper than the standard vault height. To clean: remove the lid, insert a flush wand, and flush with water until effluent runs clear.
Ideal for all PitViper 2.0 wetland installations as a routine cleanout access point to extend filter media life and maintain peak biological filtration performance.
