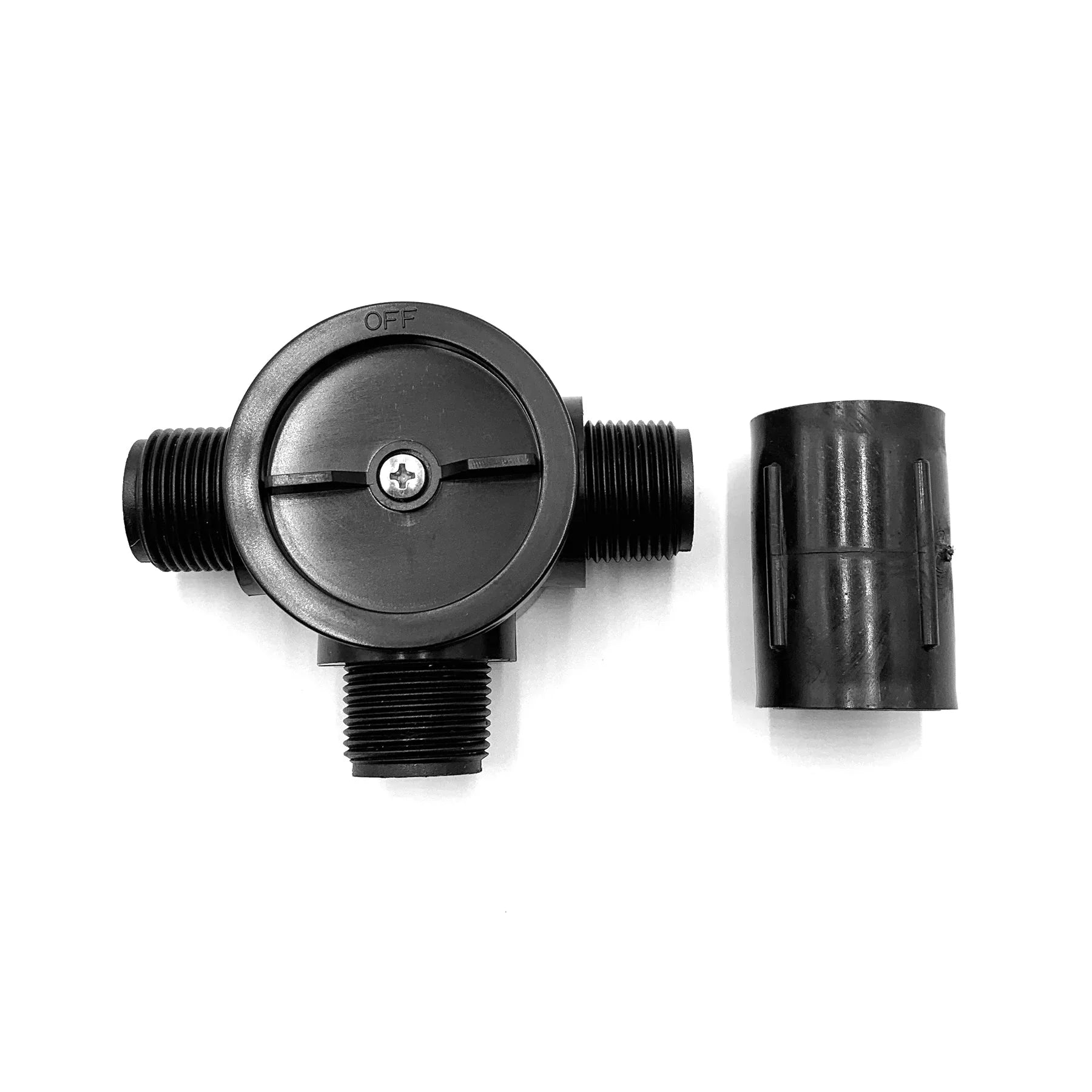

Pondmaster DV1 Diverter Valve for MD24, PM24, MD36, PM36 Pumps
The DV1 diverter valve is the factory-matched flow control accessory for Pondmaster pump models MD24, PM24, MD36, and PM36. It routes the pump output between two destinations, filter return and waterfall, or filter and bypass, with a single lever turn, without stopping or restarting the pump. Replace when the valve becomes stiff, leaks at the stem, or loses its seating.
| Valve Size | 1" |
|---|---|
| Compatible Pumps | Pondmaster MD24, PM24, MD36, PM36 |
| Function | Redirects flow between two plumbing outlets |
| Material | UV-stable thermoplastic |
Installation
Thread the valve onto the pump's discharge port or into a tee in the return line. Apply thread sealant tape to all NPT connections. Connect the two outlet ports to your desired destinations. Test by cycling the valve through both positions with the pump running before finalizing installation. Check for leaks at the stem after first use and tighten the packing nut if needed.
Fits Pondmaster MD24, PM24, MD36, and PM36 pumps only. Confirm pump model before ordering, this valve is not interchangeable with the DV1.5.
