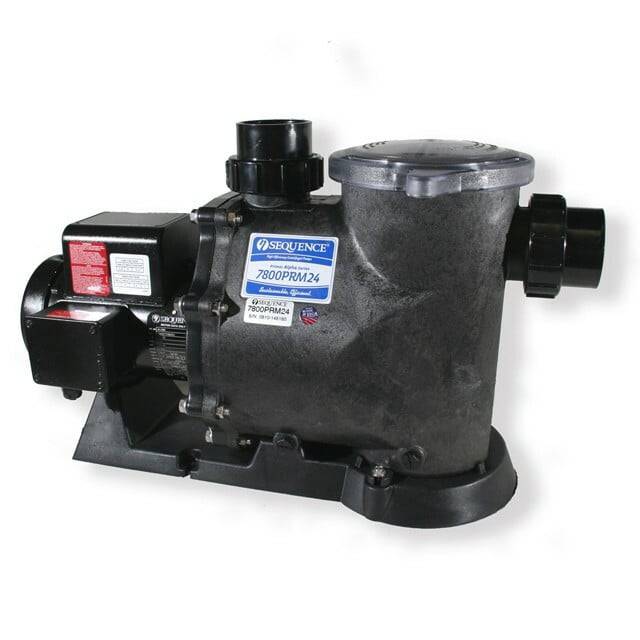

Sequence Primer Alpha 7800 Self Priming External Pump
7800PRM24
Regular price
$1,162.99
Sale price
$1,162.99
Regular price
Unit price
per
Payment methods
Please note all Sequence Pumps are now special order and there is a 2 to 3 week delivery time.
Product Description
The Primer series integrates a basket-type pre-filter and self-priming capabilities into one efficient package for trouble-free operation. The motor is totally enclosed, fan-cooled for durability with 115V or 230V and an 8-foot cord.
Special features include an internal diffuser to allow for displacement of trapped air. This type of pump will continue to move water even when there is some air in the line.
The integrated strainer basket on all primer units helps protect the internal rotating parts of the pump from damage due to external debris being pulled into the pump. The simple cover allows for quick cleaning.
Key Features
- 1/2 HP
- 2" Inlet & Discharge
- Self Priming
- 115V or 230V
- Large Strainer Basket
- 3 Year Manufacturer's Warranty
Specifications
| MODEL | 6800PRM19 | 7800PRM24 |
|---|---|---|
| INLET | 2" | 2" |
| DISCHARGE | 2" | 2" |
| MAX FLOW (gph) | 6800 | 7800 |
| MAX HEAD (feet) | 19' | 24' |
| MAX POWER (watts) | 369 | 504 |
| MAX CURRENT (amps) | 3.93 | 5.02 |
| MOTOR HP | 1/2, 1/3 | 1/2, 1/3 |
| MOTOR ENCLOSURE | TEFC | TEFC |
| WEIGHT | 55 lbs | 55 lbs |
| DIMENSIONS | 24" x 12" x 16" | 28" x 14" x 18" |
Pump Flow Chart (GPH per foot of Head)
| MODEL | 0' | 1' | 2' | 4' | 8' | 12' | 16' | 20' |
|---|---|---|---|---|---|---|---|---|
| 6800PRM19 | 6,800 | - | - | 6,180 | 5,340 | 4,200 | 2,700 | - |
| 7800PRM24 | 7,800 | - | - | 7,260 | 6,480 | 5,640 | 4,500 | 3,240 |
