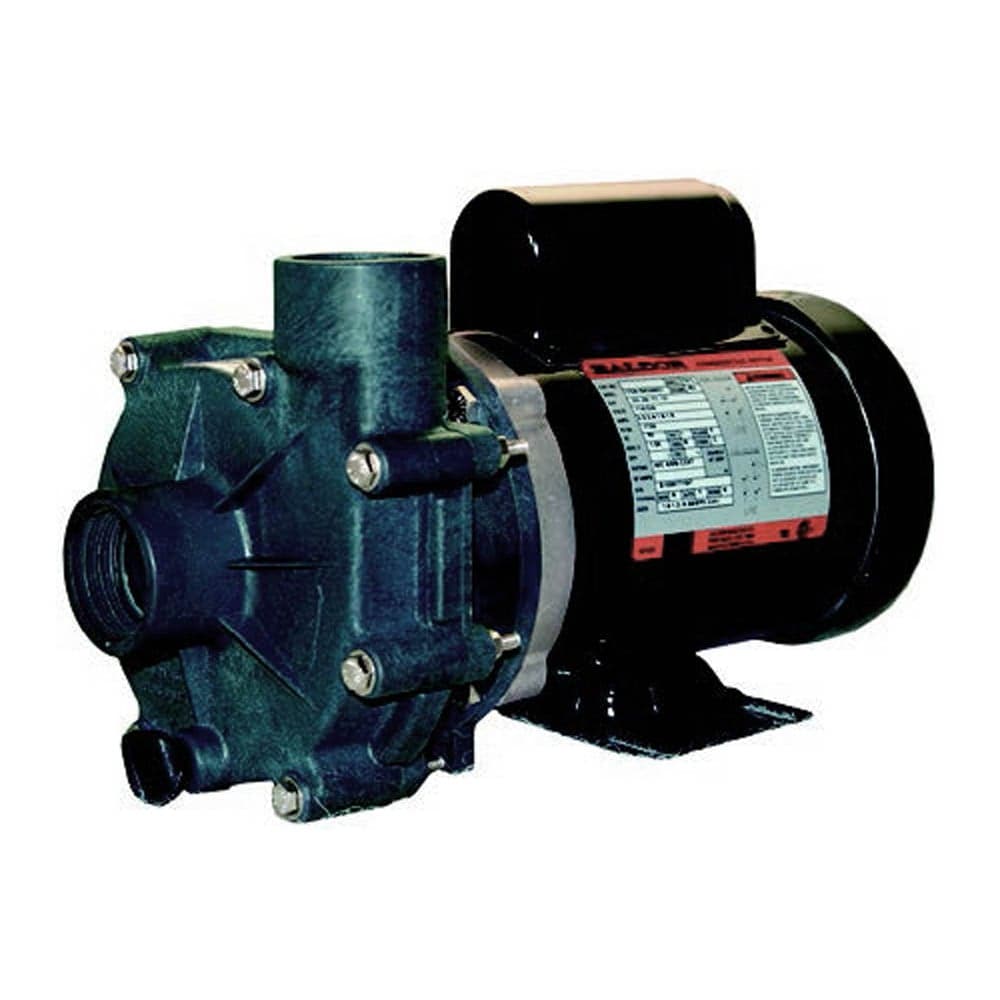

Ecostream Series pumps by Teton Dynamics
Teton Dynamic's pumps combine quality build, superior energy efficiency, and high flow for both low and medium head height systems. These pumps are ideally used for large fountains, ponds and stream applications and are only for external (out-of-water) installation. A priming pot is suggested.
Application
- Non submersible installation
- High volume applications
- Large Fountains
- Ponds and waterfalls
- Filtration systems
Features
- Enclosed motor
- Fan-cooled
- High flow
- Low energy consumption
- Thermally protected
- Threaded (NPT) intake & discharge, comes with unions
Construction
- Robust design
- Polypropylene wet end
- Noryl plastic impeller
- Stainless steel hardware
- Carbon graphite seal
Specifications
| Max Flow | [————————-Gallons per hour at———————-] | Max Head | Watts | ||||
| 4 ft | 8 ft | 12 ft | 16 ft | 20 ft | |||
| 3600 | 3120 | 2640 | 2100 | 1440 | 240 | 20.5 ft. | 227 |
Performance Curves
