Teton Dynamics Ecostream Series Inline Pumps XT-3500
XT3500
Regular price
$1,149.99
Sale price
$1,149.99
Regular price
Unit price
per
Payment methods
External Inline Pump for High-Flow Pond and Fountain Applications
The Ecostream Series XT pumps are engineered for large-scale water features where external installation is required. These non-submersible pumps deliver consistent, high-volume flow while maintaining exceptional energy efficiency—ideal for fountains, ponds, waterfalls, and filtration systems that demand reliable performance.
Why Choose Ecostream XT Pumps
Built with a polypropylene wet end, Noryl plastic impeller, and stainless steel hardware, these pumps resist corrosion and handle demanding applications. The enclosed, fan-cooled motor with thermal protection ensures safe, uninterrupted operation. Threaded NPT connections with included unions simplify installation and maintenance.
Key Features
- High-flow capacity for large water features
- Low energy consumption reduces operating costs
- Robust construction for long-term reliability
- Carbon graphite seal for durability
- 2-year warranty
Specifications
| Model | Flow Rate (GPH) | Max Head (ft) | Watts | Power | HP |
|---|---|---|---|---|---|
| XT4000LH | 4200 | 12 | 166 | 115V | 1/8 |
| XT3500 | 3500 | 20.5 | 227 | 115/230V | 1/3 |
| XT4900 | 5000 | 20.2 | 263 | 115/230V | 1/3 |
| XT5800 | 5800 | 21 | 296 | 115/230V | 1/3 |
| XT7000 | 7000 | 22.5 | 452 | 115/230V | 1/2 |
| XT8000 | 8000 | 22 | 541 | 115/230V | 1/2 |
Construction
- Robust design
- Polypropylene wet end
- Noryl plastic impeller
- Stainless steel hardware
- Carbon graphite seal
Specifications
| Max Flow | [————————-Gallons per hour at———————-] | Max Head | Watts | ||||
| 4 ft | 8 ft | 12 ft | 16 ft | 20 ft | |||
| 3600 | 3120 | 2640 | 2100 | 1440 | 240 | 20.5 ft. | 227 |

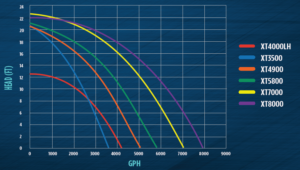

Performance Curves
